034748

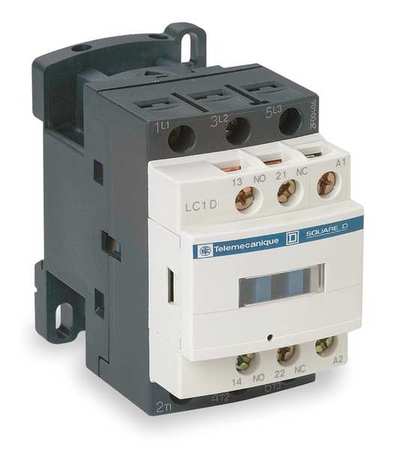

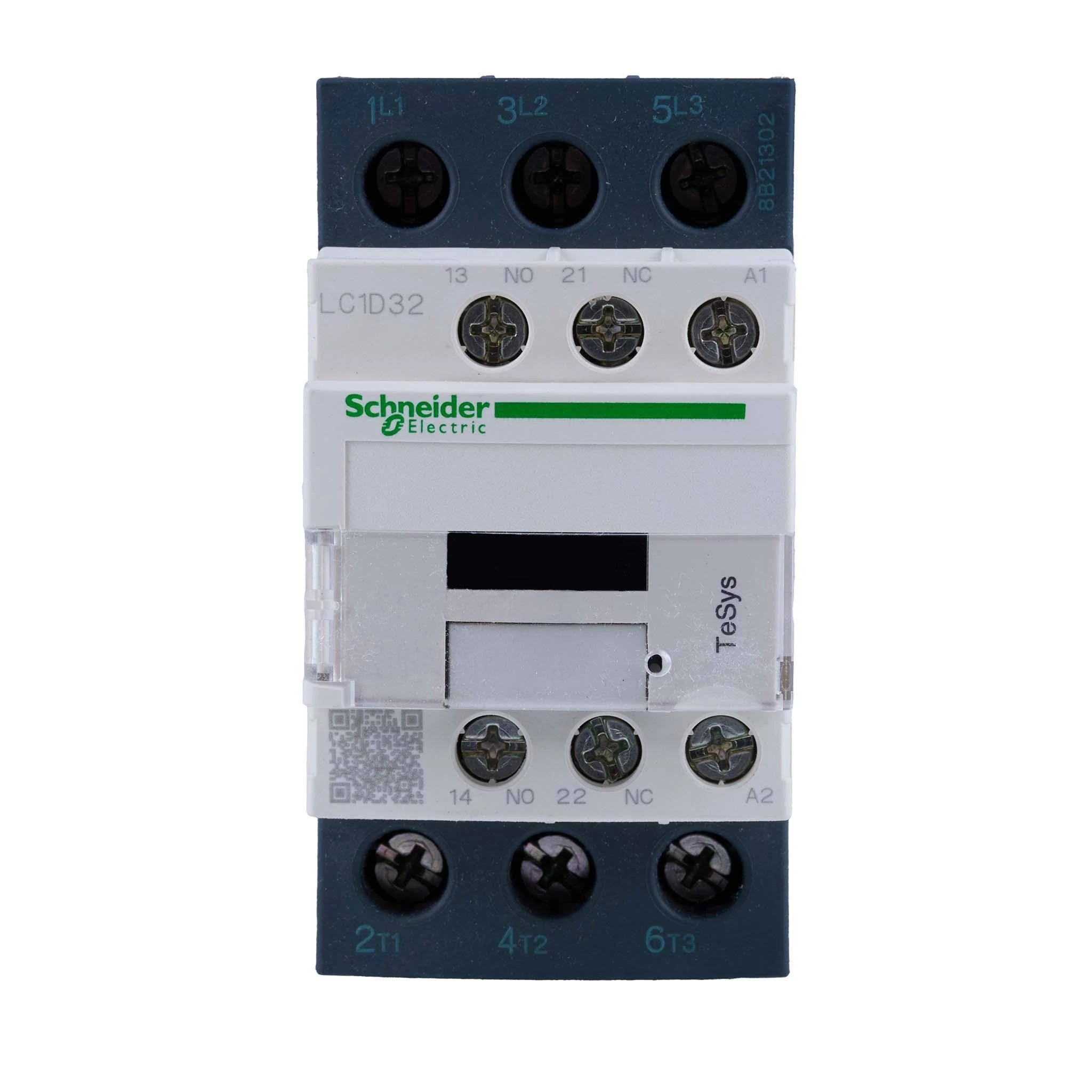

The Schneider Electric LC1D32G7 is a three-pole, non-reversing contactor used for controlling motors in compactors, balers, and other waste and recycling equipment. It features a 120 VAC coil and built-in auxiliary contacts.

Specifications

• Rated operational current: 32 amps
• Power poles: 3 normally open
• Coil voltage: 120 VAC, 50/60 Hz
• Auxiliary contacts: 1 normally open and 1 normally closed
• Three-phase motor rating:
  • 7.5 HP at 200–208 VAC
  • 10 HP at 230–240 VAC
  • 20 HP at 460–480 VAC
  • 30 HP at 575–600 VAC
• Screw-clamp terminals
• DIN-rail or panel mounting
• Approximate size: 3.35 × 1.77 × 3.62 inches
• Approximate weight: 0.83 lb

Confirm Compatibility

Before ordering, compare the complete number on your existing contactor and verify the coil voltage. Similar-looking LC1D32 contactors are available with different coil voltages and are not necessarily interchangeable.

Need help confirming the correct contactor? Contact Ferguson Waste Parts with the equipment model, serial number, and a photograph of the existing component.
